BaijnathDifferent Types of Sports Surfaces / Tiles
OLYMPIA SEATING PVT. LTD. is established in 1985 and since being associated with Godrej & Boyce Mfg. Co. Ltd., Furniture Division (Now known as "Godrej Interio"). We are an ISO 9001 : 2008 Certified Company. We have jointly developed more than 100 Products and components within a span of last 27 years, which are Nationally and Internationally accepted.

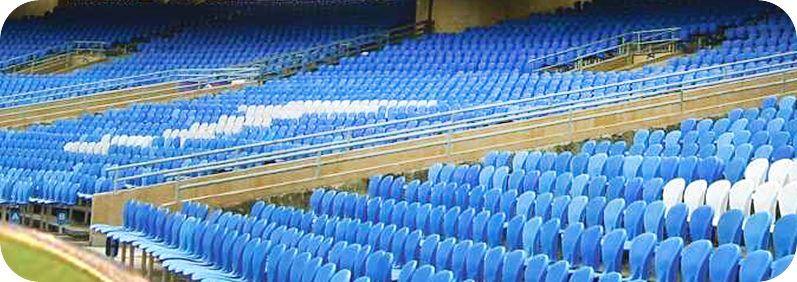

In the year 2006, we have accepted a Global Challenge to make a World Class Continuous Seating System for a Stadium of International Standards i. e. Padmashree Dr. D. Y. Patil International Stadium, located at Nerul, in Navi Mumbai. In this project, we have competed with national as well as International Players in its category and successfully won the competition.

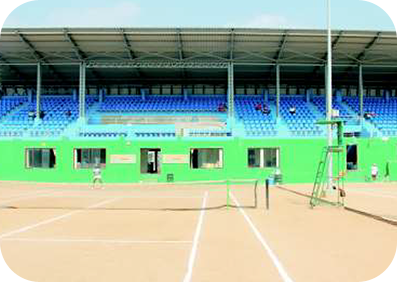

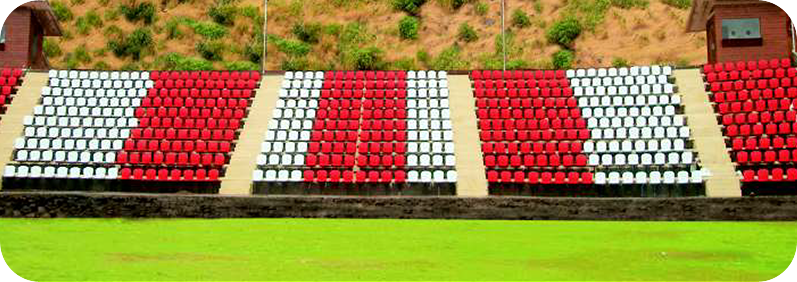

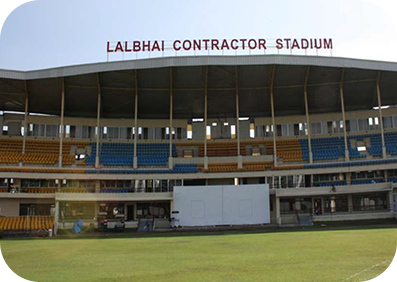

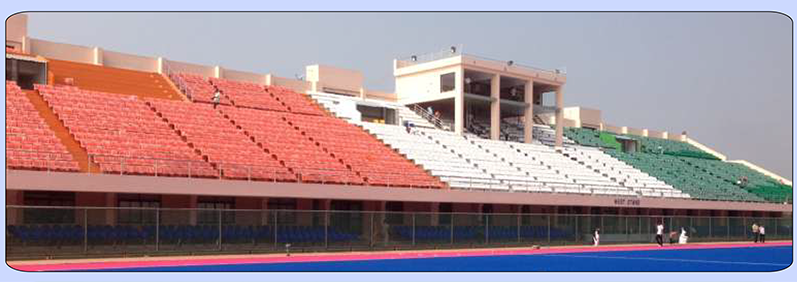

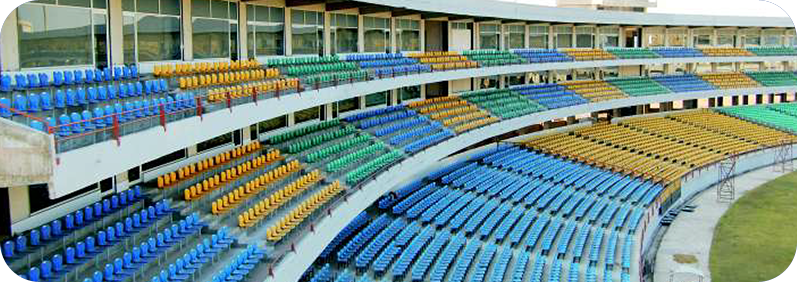

On the appreciation of the excellent work, so far, we have made seven stadiums like, Padmashree Dr. D.Y. Patil Stadium at Nerul, Pune, Aurangabad, Lonawala, Rajkot, Trans stadia in Baroda and one Stadium in Malaysia.
UVRays stability and Fire Retardant proof. Our product and design are patented in India. We have a full fledge set up of manufacturing consist of Moulding, Fabrication, Powder Coating Inspection and Post-operation facility under one Roof. Looking at the population and its growth in the Country, a need of the Space and Grounds is very big. That is why, the cost of our product is very very economical, and it is perfectly affordable to the developing Countries.

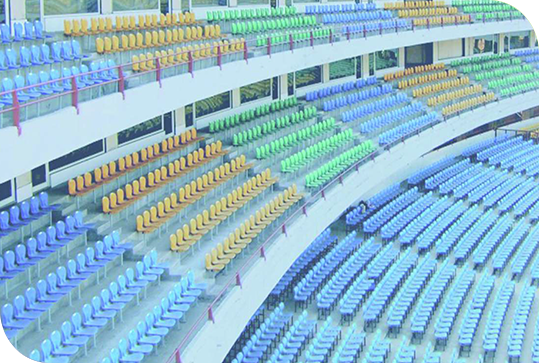

Our Products
- Mass Seating System for Indoor as well as Outdoor Sports Stadium, Auditorium, Lecture Rooms at Educational Institutes etc...
- Plastic & Metal Cafeteria Chairs
- Ground Maintenance Equipments.
- Artificial Grass or Turf for Football Ground etc...
- Jogging Track / Walking Track
- Construction of Cricket Pitch
- Development of Outfield of a stadium.
- Off Season Wicket Renovation and Outfield Renovation.
Artificial Turf
Artificial turf is a surface of synthetic fibers made to look like natural grass. It is most often used in arenas for sports that were originally or are normally played on grass. However, it is now being used on residential lawns and commercial applications as well.
The main benefit is maintenance -- artificial turf stands up to heavy use, such as in sports, and requires no irrigation or trimming. Domed, covered, and partially covered stadiums may require artificial turf because of the difficulty of getting grass enough sunlight to stay healthy.

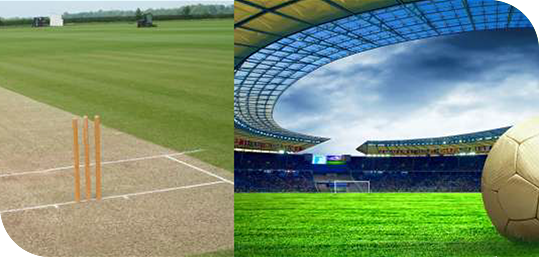

Ground Related
We provide following Ground related services.
Supply of ground maintenance equipments
Construction of cricker pitch
Development of outfield of a stadium
Off season wicket revovation and outfield renovation

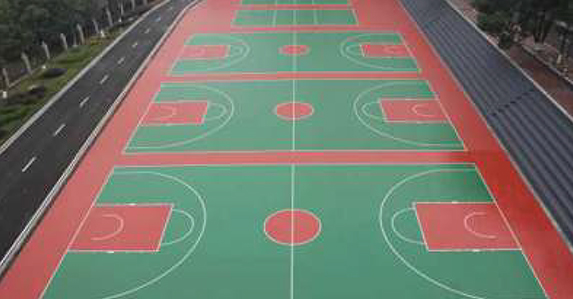

Sports Court
Running Track

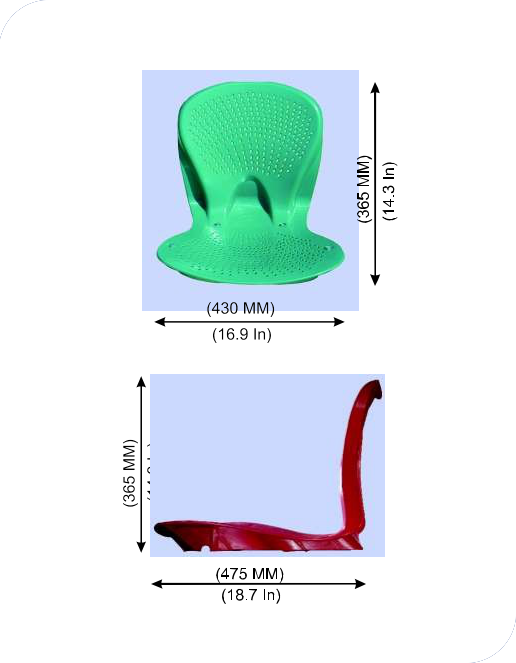

Bucket Chair
Moulded
- Moulded from UV resistant polypropylene with fire retardant additives available, to 180 Kilo Langley Rating.
Fastening
- Tamper proof fastenings.
Backrest
- Flexable upper back support provides dynamic support in active event viewing.
Strength & Durability
- The seat has been designed to pass the most demanding standards and comes with a five year guarantee.
Perforations
- Minimise water trapment and provides ventilation for those hot summer days.
Numbering
- Two digit seat numbering Is provided as per Industrial standards.
Mounts
- Mounts easily on concrete or steel framework.
Standards
- Seat designed to be 'maintenance free" and has been tested to International standards.
Technical Specifications

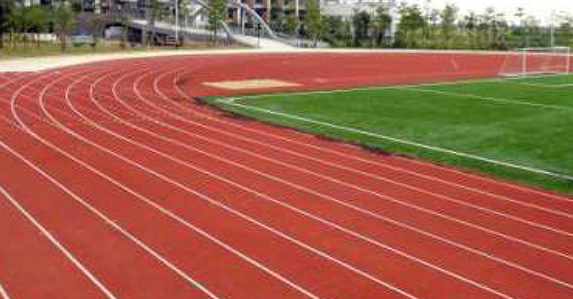

3 TYPES OF RUNWAY TRACK

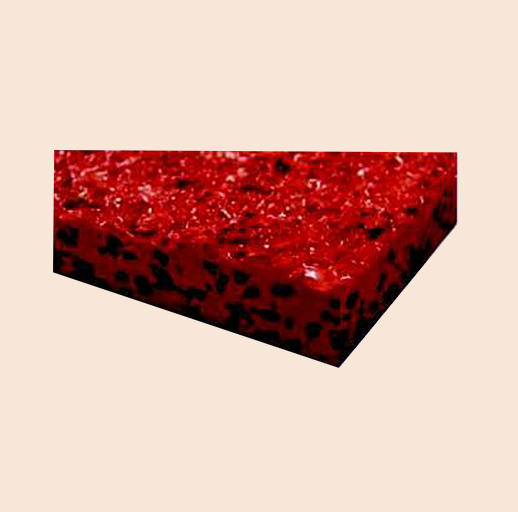

Plastic track surface
Mixes PU glue with EPDM, laying by machine
Buffer cushion
It consists PU glue and rubber granule.
Performance Feature
Could gratify requirement of normal track and field. The performance is excellent, apply to spike exercise. Allthe performance is stable ility and strong service life Reasonable price, widely application.

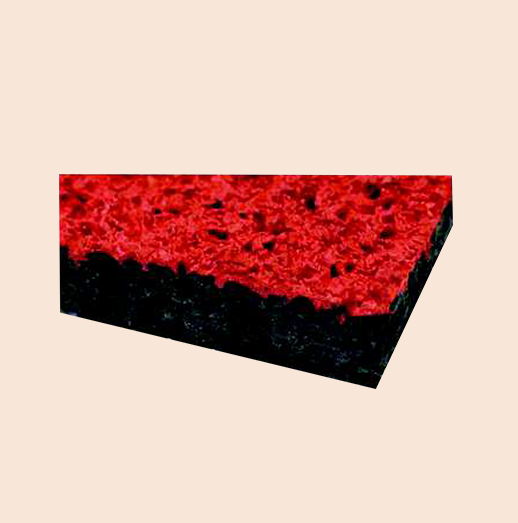

Plastic track surface
Mixes PU glue with EPDM, laying by machine
Buffer cushion
It consists rubber granule. and adhesive.
Performance Feature
Suitable for Primary and secondary school. Due to its special structure, its easy drain and breathe, not easy bulking. Construction with machine, quality is stability Because of no compulsion of foundation, its widely used in the market and also price is reasonable
Performance Feature
01. TPO, mix PE/PP/EPDM, slip resistance, wear-proof, heat resistance, antii-aging.
02. Prefabricated forming, convient installation.
03. Good adhesion, no degumming and cracking.
04. Eco-friendly.
05. Product performance conforms with the requirements of the IAAF standards

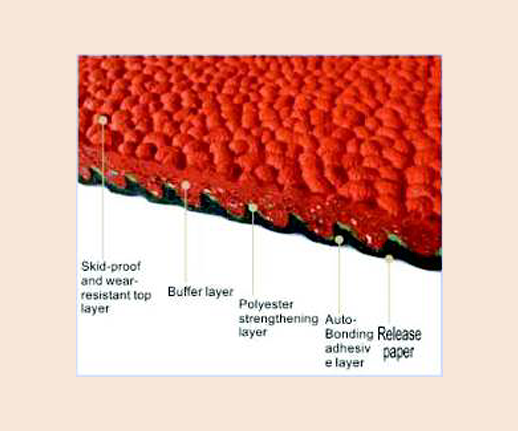

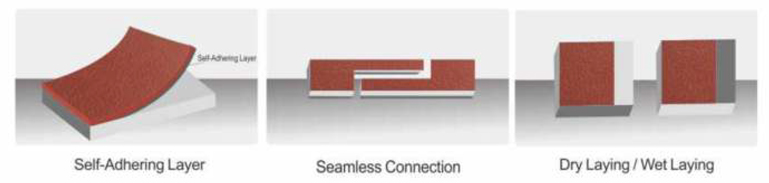

Auto Bonding Material
For Sports Court / Synthetic Track / Ground.
The surface of this material is a self adhesive layer.
It's a simple construction which can make sure the soundness of the material with the sub base as well as the material two splicing. We can choose the construction method depending up on type of ground foundation.

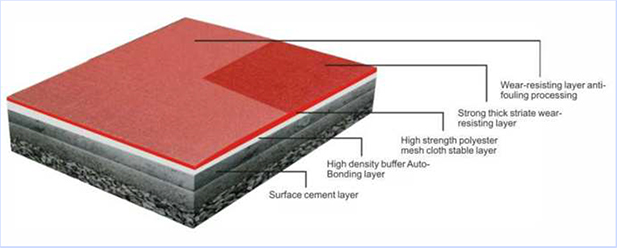

System of Construction
The surface of this material is a self adhesive layer.
It's a simple construction which can make sure the soundness of the material with the sub base as well as the material two splicing. We can choose the construction method depending up on type of ground foundation.
Application
It is used for most of the indoor as well as outdoor sports grounds surface materials, best for basketball, tennis, volleyball, badminton, and football also used for landscaping.
Blow Moulded Chair

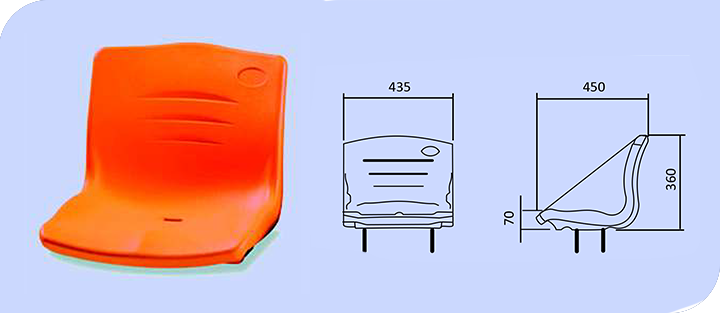

Standard Fixing Type
- Seat
- HDPE(Blow Moulding)
- Fixing Bolt
- M6 Insert bolt=Epoxy Bonding
- Prod Code : BMSF

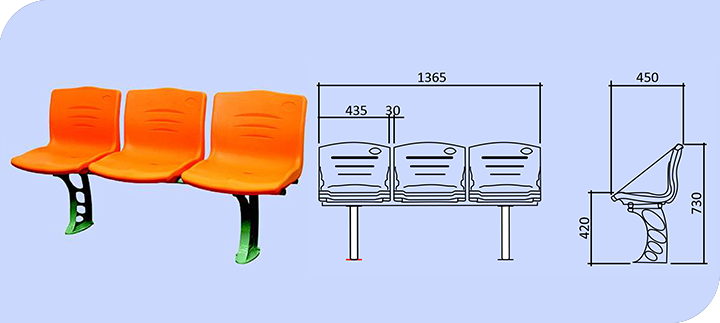

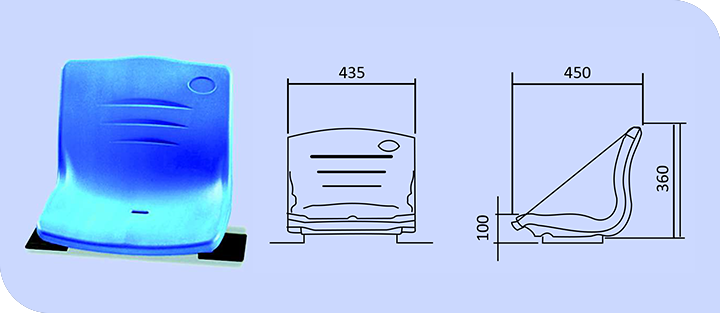

Bracket Fixing Type
- Seat
- HDPE(Blow Moulding)
- Bracket
- 3t Steel Plate + Powder Coating
- Fixing Bolt
- 08 Anchor Bolt
- Prod Code : BMBF
Bracket Fixing Type
- Seat
- HDPE(Blow Moulding)
- Pipe
- 027.3 Pipe + Steel plate + Powder coating
- Leg
- A.L Die Casting + powder coating
- Fixing bolt
- 08 Anchor Baolt
- Prod Code : BMFM

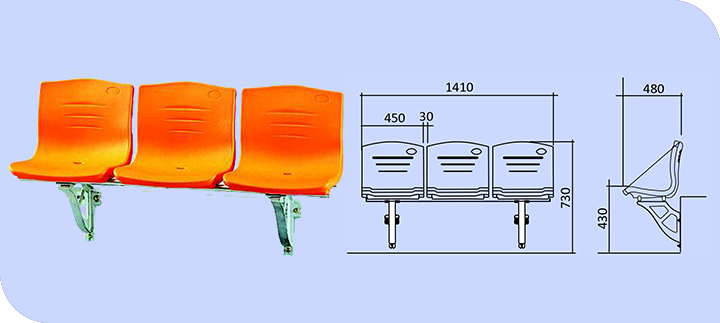

Riser Mount Type
- Seat
- HDPE(Blow Moulding)
- Pipe
- 027.3 pipe + Steel plate + powder coating
- Leg
- A.L Die casting + powder coating
- Fixing bolt
- 08 Anchor Baolt
- Prod Code : BMRM

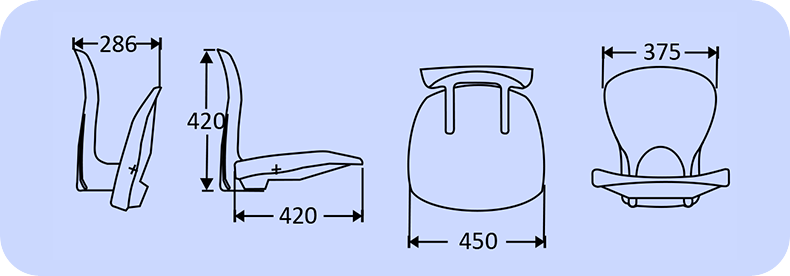

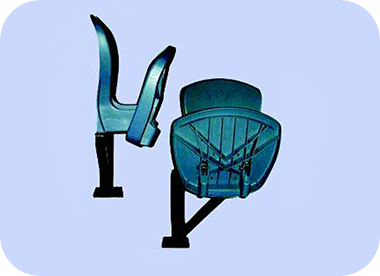

Tip-Up Chair
Moulded : Moulded from UV resistant polypropylene with fire retardant additives available, to 180 Kilo Langley Rating.
Fastening : Tamper proof fastenings.
Backrest : Flexible upper back and solid lower back provide exceptional support and avoids concentrated pressure points.
Strength & Durability : The seat has been designed to pass the most demanding standards and Durability comes with a five year guarantee.
Ergonomic : Seat conforms to the preferred posture and supports movement, as supported by ergonomic studies.
Standards : Seat designed to be "maintenance free" and has been tested to International standards.
Seat Tip Up : The tip up operation has an initial stop at the three quarter "wave safe" position and can be held back to the most compact position for increased access.

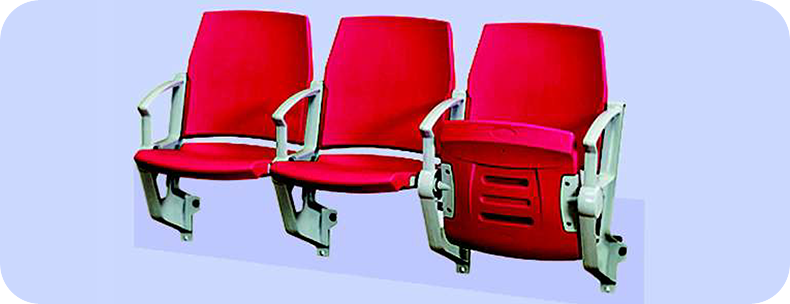

VIP Chairs
Riser Mount Type
- Back plate
- HDPE (Blow Moulding)
- Seat
- HDPE(Blow Moulding)
- Frame, Bracket
- A.L Die casting + powder coating
- Fixing bolt
- 08 Anchor Baolt

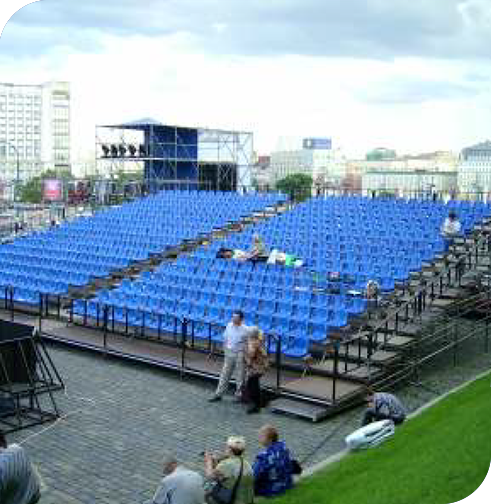

Bleachers
Bleacher chairs are raised, tiered rows of seats found at sports fields and other spectator events. Stairways access the horizontal rows of seats, often with every other step gaining access to a row of seats.
Seats range from simple plank seats to more elaborate seats with backrests. Many bleachers are open to the ground below so that there are only the plank to sit and walk on. Some bleachers have vertical panels beneath the seats, either partially or completely blocking the way to the ground.
Bleacher structures vary depending on the location, but most outdoor modern bleachers have either an aluminium tube or steel angle understructure (known as frame-type bleachers) or steel-beams (known as an I-beam bleacher). Most smaller bleachers are frame-type bleachers and most larger bleachers are I-Beam bleachers.
Bleachers range in size from small, modular, aluminum stands that can be moved around soccer or hockey fields to large permanent structures that flankeach side of the field.
Structural features
- 01. The understructure is made by welded angle bar with surface hot galvanized.
- 02. The tread is made by extruded aluminum with surface anodized.
- 03. The riser is rolled by 2.0 galvanized steel belt
- 04. The guardrail is made by welded square bar and flat bar with surface galvanized and powder coated.
- 05. Step Width: 632mm/764mm/882mm Riser Height 250mm
Product features
- 01. Available from 5 to 15 rows to satisfy various requirements
- 02. Suitable in stadium,training field,racing track,school etc

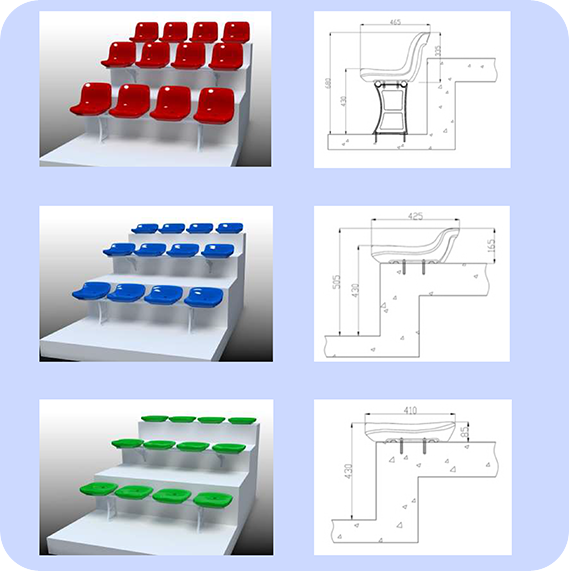

Fixed Seat - Blow Moulded
01. The plastic parts adopts HDPE, seat stents is made of aluminium alloy precision forming one-time
02. The back and the chair surface using double-wall hollow blow molding structure and take the thickning design
03. Four kinds of back design can meet different needs High, Medium, Low and Without.
